Smoant Charon Mini 225W TC Box Mod


Smoant Charon Mini 225W TC Box Mod

SKU: N/A Categories: ,


Smoant Charon Mini 225W TC Box Mod

The Smoant Charon Mini 225W TC Box Mod is an upgrade to the original Smoant Charon 218W TC Box Mod in a smaller package. This upgraded device features a variable wattage range of 1 to 225W, a full temperature control suite with TCR Mode, Variable Wattage & Temperature Control Curves, and a gorgeous 2.0 inch TFT screen. The ANT225 chip in the Charon Mini features 1 to 225W output with an atomizer resistance of 0.1 to 3.0 ohm and a temperature control suite that supports Ni200, Titanium, and Stainless Steel with resistance range of 0.1 to 2.0 ohm. The Charon mini also has TCR mode and a variable wattage and temperature control curve output mode.

The Smoant Charon Mini 225W TC Box Mod has a 2 inch colored TFT screen with a 262K pixel count and 300 dpi resolution. The ANT225 chip allows the user to choose from two different UI styles and 9 pre-installed wallpapers. The user can then choose to upload their own personal wallpaper in the device through the USB cable and upgrade the firmware through the Smoant website.

The USB cable supports up to 1.5A charging and features a safe battery charging mode that charges both batteries at the same time. The Charon has a three button interface with an oversized firing button on the side of the device and two adjustment buttons in the front of the device. The atomizer is connected to the device with a 510 spring loaded connection.

The ANT225 chip comes with a full safety suite that includes low voltage protection, reverse polarity protection, and more. The Smoant Charon Mini 225W TC Box Mod is an excellent upgrade to the original, complete with a host of new features that make it an excellent choice for users of all levels of experience.

Product Features:

    • ANT225 Chip
    • 1 to 225W Power Output
    • 0.1 to 3.0 ohm Atomizer Resistance Range
      6.8V to 8.4V
    • 10 sec Maximum Continuous Firing Time
    • Firmware Upgradeable
    • Full Temperature Control Output
    • Ni200 Nickel Support
    • Titanium Support
    • Stainless Steel 316L Support
    • TCR Mode
    • Set Own Temperature Coefficient of Resistance
    • Fine Tune Output
    • 0.1 to 2.0 ohm Atomizer Resistance Range
    • Automatic Resistance Lock
    • 200 to 600 degrees Fahrenheit Range
    • Variable Wattage and Temp Control Curves
    • 2.0 Inch TFT Screen
    • 262K Pixel Count
    • 300 dpi Resolution
    • Screen Prompts
    • No Atomizer
    • Shorted
    • Low Atomizer
    • Temperature Control
    • Check Battery
    • Power Locked Hold Up Down
    • Device Too Hot
    • Dual Interchangeable UI Styles
    • 9 Pre-Installed Wallpapers
    • User Customizable Wallpapers
    • Slide Away Dual Magnetized Battery Bay
    • Accepts Two High Amperage 18650 Batteries

Batteries Not Included

    • Three Button Control Face
    • Dedicated Wattage and Temperature Buttons
    • Dedicated Adjustment Buttons
    • Oversized Firing Buttons
    • Quickly Adjust and Switch Between Modes
    • Spring Loaded 510 Connection
    • Automatic Cut-Off/Short Circuit/Low Resistance/Overheat/Overcharge/Over Discharge Protection
    • Micro USB Charging Port
    • 1.5A Charging
    • Safe Charging Supported
    • Size: 89mm X 45mm X 29mm

Product Includes:

  • One Smoant Charon Mini 225W Box Mod
  • One Micro USB Charging Cable
  • One Warning Card
  • One Warranty Card
  • One User Manual
  • One Certification Card

Additional information

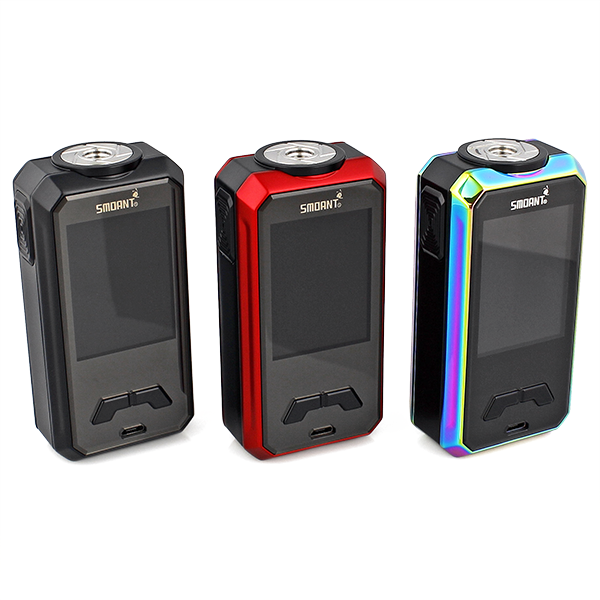

Black, Rainbow
